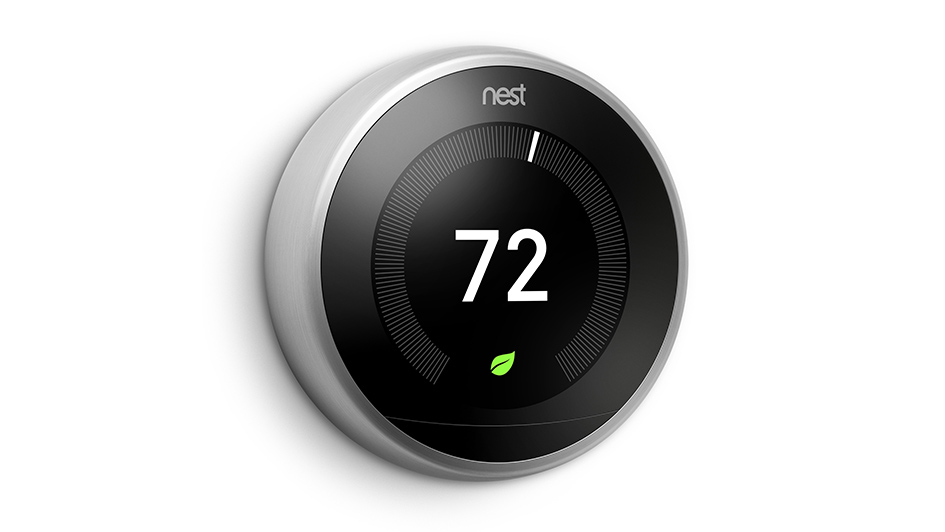

Operating a Nest thermostat is one of the easiest ways to optimize the day-to-day schedule of your heating and cooling. This smart thermostat can recognize your preferences and automatically make changes. But as you can expect, it won’t work correctly or at all if you see an error code on the display. The exact error code offers useful information about the source of the problem, something a trained technician can use to provide solutions that much faster.
Let’s consider seven of the most likely error codes you may discover on your Nest thermostat. We’ll explain the basics of each error code as well as how you can address it and the estimated cost to do so. Keep in mind that while the investment will ultimately be dependent on the precise Nest model, you can anticipate paying around $75-$200 for repairs. This should include things like travel and labor costs as well as any specific hardware needed to complete repairs.
e298 – Critical
This critical error code is limited to the latest models of the Nest thermostat and is displayed when the power is shut off. Because this is a critical power error, the thermostat will switch to the backup battery system. The error message will remain on display until the problem is fixed.
Losing power to your Nest thermostat can be for several reasons. The wiring might have disconnected or become damaged, or a disconnection might have happened further along in your home’s electrical system. This could be the circuit breaker, fuse box or system switch. A certified technician can check electrical connections and wiring until they locate the source of the problem.
e294 – Critical
Critical error code e294 shows up when your Nest thermostat’s wiring needs to be reconfigured. More specifically, the technician will need to reconfigure the R wire. They’ll first complete a factory reset of your thermostat to ensure it’s not just a software issue. If that doesn’t work, they’ll check the wiring diagram of the thermostat and start inspecting connectors.
They’ll disconnect the power and progressively check each wire, ensuring they are fully attached into the connector with the correct amount of bare copper. Once they pinpoint the malfunctioning connector, it can be exchanged for a new one.
e195 – Critical
This critical error code can appear when the weather outside is particularly hot. The HVAC system can shut down and stop sending power to your Nest thermostat. When this problem lingers, the backup battery in your thermostat drains and the thermostat will subsequently power down. In the event the breakers are on, you can check a couple of other places before calling a professional technician.
As this error can consume your thermostat’s battery, the first step may be supplying enough power to determine if this specific error code is what you’re facing. You can separate the thermostat from its base and deliver power through a USB cable. In the event it reveals error code 195, you can continue to visually check components including the wiring as well as your air conditioner’s air filter or drainage system. If you don’t detect anything wrong with these components, it’s maybe best to contact a pro.
e103 – Critical
Another critical error code, e103 indicates an electrical error with your Nest thermostat. More specifically, e103 will refer to an overcurrent problem, which means the wiring is receiving more power than necessary. This will sometimes stem from the breaker box, an error from the control board or because of a defective connection in the thermostat. A technician should meticulously inspect and test the Nest’s electrical system to figure out where the power is surging or why the thermostat is convinced there’s an overcurrent problem.
n260
While this error code isn’t critical, it may still prevent you from using the Nest thermostat how you prefer to. Error code n260 concerns the lack of a C wire or Nest Power Connector, as missing one can block your Nest from receiving enough power. You can examine the Nest’s C connector for the presence of a C wire and adapt the wiring itself if there is. If not, you need a Nest Power Connector.
Due to installation of a Nest Power Connector, you may notice error code E297 be displayed. This can be dealt with by updating your thermostat in Settings -> Software -> Update. If the Power Connector is already installed, you’ll instead need to update the wiring info in the app from Settings -> Thermostat -> Wiring -> Update wiring.
e104 – Critical
Just like error code e103, e104 is a critical error originating from an overcurrent. If excess power is being delivered using the Nest’s wiring, it may damage internal components and may even be a fire hazard. If you notice this error code appear on your Nest thermostat and want to guard against electrical damage, it’s suggested to switch the power off as soon as you can. You can then contact a professional technician with the proper experience identifying and resolving electrical damage.
e73 – Critical
When your thermostat displays error code e73, it signifies that the Rc wire is not receiving power.
This could be as easy as the breaker being turned off, but it may also be something with the wiring. After switching off the power to your HVAC system and thermostat, you can visually inspect the wires to make sure none of them are loose or damaged. If nothing seems to be out of place, it’s time to speak with a local professional.
